| subroutine, public | mod_twofl_phys::twofl_phys_init () |
| |
| subroutine, public | mod_twofl_phys::twofl_to_conserved (ixil, ixol, w, x) |
| | Transform primitive variables into conservative ones.
|
| |
| subroutine, public | mod_twofl_phys::twofl_to_primitive (ixil, ixol, w, x) |
| | Transform conservative variables into primitive ones.
|
| |
| subroutine | twofl_get_csound2_primitive (w, x, ixil, ixol, csound2) |
| |
| subroutine, public | mod_twofl_phys::twofl_get_csound2_c_from_conserved (w, x, ixil, ixol, csound2) |
| |
| subroutine, public | mod_twofl_phys::get_rhon_tot (w, x, ixil, ixol, rhon) |
| |
| subroutine, public | mod_twofl_phys::twofl_get_pthermal_n (w, x, ixil, ixol, pth) |
| |
| subroutine, public | mod_twofl_phys::twofl_get_v_n_idim (w, x, ixil, ixol, idim, v) |
| | Calculate v component.
|
| |
| subroutine, public | mod_twofl_phys::get_rhoc_tot (w, x, ixil, ixol, rhoc) |
| |
| subroutine, public | mod_twofl_phys::twofl_get_pthermal_c (w, x, ixil, ixol, pth) |
| |
| subroutine, public | mod_twofl_phys::twofl_get_v_c_idim (w, x, ixil, ixol, idim, v) |
| | Calculate v_c component.
|
| |
| subroutine, public | mod_twofl_phys::get_normalized_divb (w, ixil, ixol, divb) |
| | get dimensionless div B = |divB| * volume / area / |B|
|
| |
| subroutine, public | mod_twofl_phys::get_current (w, ixil, ixol, idirmin, current) |
| | Calculate idirmin and the idirmin:3 components of the common current array make sure that dxlevel(^D) is set correctly.
|
| |

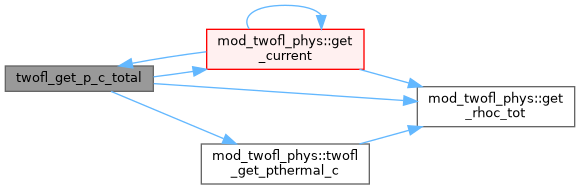

| subroutine | twofl_get_p_c_total (w, x, ixil, ixol, p) |
| |
| subroutine, public | mod_twofl_phys::twofl_clean_divb_multigrid (qdt, qt, active) |
| |
| subroutine, public | mod_twofl_phys::twofl_face_to_center (ixol, s) |
| | calculate cell-center values from face-center values
|
| |
| subroutine, public | mod_twofl_phys::b_from_vector_potential (ixisl, ixil, ixol, ws, x) |
| | calculate magnetic field from vector potential
|
| |
| subroutine | add_density_hyper_source (index_rho) |
| |
| subroutine, public | mod_twofl_phys::get_gamma_ion_rec (ixil, ixol, w, x, gamma_rec, gamma_ion) |
| |
| subroutine, public | mod_twofl_phys::get_alpha_coll (ixil, ixol, w, x, alpha) |
| |
|
| integer, parameter, public | mod_twofl_phys::eq_energy_tot =2 |
| |
| integer, parameter, public | mod_twofl_phys::eq_energy_int =1 |
| |
| integer, parameter, public | mod_twofl_phys::eq_energy_none =0 |
| |
| integer, parameter, public | mod_twofl_phys::eq_energy_ki =3 |
| |
| integer, public, protected | mod_twofl_phys::twofl_eq_energy = EQ_ENERGY_TOT |
| |
| logical, public, protected | mod_twofl_phys::twofl_hyperdiffusivity = .false. |
| | Whether hyperdiffusivity is used.
|
| |
| logical, public, protected | mod_twofl_phys::twofl_dump_hyperdiffusivity_coef = .false. |
| |
| double precision, dimension(:), allocatable, public, protected | mod_twofl_phys::c_shk |
| |
| double precision, dimension(:), allocatable, public, protected | mod_twofl_phys::c_hyp |
| |
| logical, public, protected | mod_twofl_phys::twofl_thermal_conduction_c = .false. |
| | Whether thermal conduction is used.
|
| |
| logical, public, protected | mod_twofl_phys::twofl_radiative_cooling_c = .false. |
| | Whether radiative cooling is added.
|
| |
| type(rc_fluid), allocatable, public | mod_twofl_phys::rc_fl_c |
| |
| logical, public, protected | mod_twofl_phys::twofl_viscosity = .false. |
| | Whether viscosity is added.
|
| |
| logical, public, protected | mod_twofl_phys::twofl_gravity = .false. |
| | Whether gravity is added: common flag for charges and neutrals.
|
| |
| logical, public, protected | mod_twofl_phys::twofl_dump_full_vars = .false. |
| | whether dump full variables (when splitting is used) in a separate dat file
|
| |
| logical, public, protected | mod_twofl_phys::twofl_hall = .false. |
| | Whether Hall-MHD is used.
|
| |
| type(tc_fluid), allocatable, public | mod_twofl_phys::tc_fl_c |
| |
| type(te_fluid), allocatable, public | mod_twofl_phys::te_fl_c |
| |
| logical, public, protected | mod_twofl_phys::twofl_thermal_conduction_n = .false. |
| |
| logical, public, protected | mod_twofl_phys::twofl_radiative_cooling_n = .false. |
| |
| logical, public, protected | mod_twofl_phys::twofl_trac = .false. |
| | Whether TRAC method is used.
|
| |
| logical, public, protected | mod_twofl_phys::twofl_glm = .false. |
| | Whether GLM-MHD is used.
|
| |
| integer, public, protected | mod_twofl_phys::twofl_trac_type =1 |
| | Which TRAC method is used
|
| |
| double precision, public, protected | mod_twofl_phys::twofl_trac_mask = 0.d0 |
| | Height of the mask used in the TRAC method.
|
| |
| logical, public, protected | mod_twofl_phys::source_split_divb = .false. |
| | Whether divB cleaning sources are added splitting from fluid solver.
|
| |
| double precision, public | mod_twofl_phys::twofl_glm_alpha = 0.5d0 |
| | GLM-MHD parameter: ratio of the diffusive and advective time scales for div b taking values within [0, 1].
|
| |
| logical, public, protected | mod_twofl_phys::twofl_4th_order = .false. |
| | MHD fourth order.
|
| |
| integer, public | mod_twofl_phys::rho_c_ |
| | Index of the density (in the w array)
|
| |
| integer, dimension(:), allocatable, public | mod_twofl_phys::mom_c |
| | Indices of the momentum density.
|
| |
| integer, public, protected | mod_twofl_phys::c |
| | Indices of the momentum density for the form of better vectorization.
|
| |
| integer, public, protected | mod_twofl_phys::m |
| |
| integer, public, protected | mod_twofl_phys::c_ |
| |
| integer, public | mod_twofl_phys::e_c_ =-1 |
| | Index of the energy density (-1 if not present)
|
| |
| integer, public, protected | mod_twofl_phys::b |
| |
| integer, public | mod_twofl_phys::tcoff_c_ |
| | Index of the cutoff temperature for the TRAC method.
|
| |
| integer, public | mod_twofl_phys::tweight_c_ |
| |
| integer, public, protected | mod_twofl_phys::psi_ |
| | Indices of the GLM psi.
|
| |
| logical, public | mod_twofl_phys::has_equi_rho_c0 = .false. |
| | equi vars flags
|
| |
| logical, public | mod_twofl_phys::has_equi_pe_c0 = .false. |
| |
| integer, public | mod_twofl_phys::equi_rho_c0_ = -1 |
| | equi vars indices in the stateequi_vars array
|
| |
| integer, public | mod_twofl_phys::equi_pe_c0_ = -1 |
| |
| logical, public | mod_twofl_phys::twofl_equi_thermal_c = .false. |
| |
| logical, public | mod_twofl_phys::twofl_equi_thermal = .false. |
| |
| integer, public | mod_twofl_phys::rho_n_ |
| |
| integer, dimension(:), allocatable, public | mod_twofl_phys::mom_n |
| |
| integer, public | mod_twofl_phys::e_n_ |
| |
| integer, public | mod_twofl_phys::tcoff_n_ |
| |
| integer, public | mod_twofl_phys::tweight_n_ |
| |
| logical, public | mod_twofl_phys::has_equi_rho_n0 = .false. |
| |
| logical, public | mod_twofl_phys::has_equi_pe_n0 = .false. |
| |
| integer, public | mod_twofl_phys::equi_rho_n0_ = -1 |
| |
| integer, public | mod_twofl_phys::equi_pe_n0_ = -1 |
| |
| double precision, public | mod_twofl_phys::twofl_alpha_coll = 0d0 |
| | collisional alpha
|
| |
| logical, public | mod_twofl_phys::twofl_alpha_coll_constant = .true. |
| |
| logical, public | mod_twofl_phys::twofl_coll_inc_te = .true. |
| | whether include thermal exchange collisional terms
|
| |
| logical, public | mod_twofl_phys::twofl_coll_inc_ionrec = .false. |
| | whether include ionization/recombination inelastic collisional terms
|
| |
| logical, public | mod_twofl_phys::twofl_equi_thermal_n = .false. |
| |
| double precision, public | mod_twofl_phys::dtcollpar = -1d0 |
| |
| logical, public, protected | mod_twofl_phys::twofl_dump_coll_terms = .false. |
| | whether dump collisional terms in a separte dat file
|
| |
| double precision, public, protected | mod_twofl_phys::he_abundance = 0d0 |
| |
| double precision, public, protected | mod_twofl_phys::rc = 2d0 |
| |
| double precision, public, protected | mod_twofl_phys::rn = 1d0 |
| |
| double precision, public | mod_twofl_phys::twofl_gamma = 5.d0/3.0d0 |
| | The adiabatic index.
|
| |
| double precision, public | mod_twofl_phys::twofl_adiab = 1.0d0 |
| | The adiabatic constant.
|
| |
| double precision, public | mod_twofl_phys::twofl_eta = 0.0d0 |
| | The MHD resistivity.
|
| |
| double precision, public | mod_twofl_phys::twofl_eta_hyper = 0.0d0 |
| | The MHD hyper-resistivity.
|
| |
| double precision, public | mod_twofl_phys::twofl_etah = 0.0d0 |
| | The MHD Hall coefficient.
|
| |
| character(len=std_len), public, protected | mod_twofl_phys::typedivbfix = 'linde' |
| | Method type to clean divergence of B.
|
| |
| character(len=std_len), public, protected | mod_twofl_phys::type_ct = 'uct_contact' |
| | Method type of constrained transport.
|
| |
| integer, public, protected | mod_twofl_phys::twofl_divb_nth = 1 |
| | Whether divB is computed with a fourth order approximation.
|
| |
| logical, public | mod_twofl_phys::clean_initial_divb = .false. |
| | clean initial divB
|
| |
| logical, public | mod_twofl_phys::divbwave = .true. |
| | Add divB wave in Roe solver.
|
| |
| logical, dimension(2 *^nd), public, protected | mod_twofl_phys::boundary_divbfix =.true. |
| | To control divB=0 fix for boundary.
|
| |
| integer, dimension(2 *^nd), public, protected | mod_twofl_phys::boundary_divbfix_skip =0 |
| | To skip * layer of ghost cells during divB=0 fix for boundary.
|
| |
| logical, public, protected | mod_twofl_phys::b0field_forcefree =.true. |
| | B0 field is force-free.
|
| |
| procedure(mask_subroutine), pointer, public | mod_twofl_phys::usr_mask_alpha => null() |
| |
| procedure(mask_subroutine2), pointer, public | mod_twofl_phys::usr_mask_gamma_ion_rec => null() |
| |
